Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT235/80R17 E 120/117Q | 206890 | 18.3 | 32.05 | 9.25 | 6.0-(6.5)-7.5 | 3085 @ 80 | 51.34 |
| LT245/75R17 E 121Q | 206940 | 18.3 | 31.73 | 9.76 | 6.5-(7.0)-7.5 | 3195 @ 80 | 53.34 |
| LT265/70R17 E 121/118Q | 206870 | 18.4 | 31.89 | 10.71 | 7.0-(8.0)-8.5 | 3195 @ 80 | 60.81 |
| LT285/70R17 E 121/118Q | 206860 | 18.4 | 32.99 | 11.50 | 7.5-(8.5)-9.0 | 3195 @ 80 | 61.51 |
| 35x12.50R17LT E 121Q | 206900 | 19.3 | 34.76 | 12.52 | 8.5-(10.0)-11.0 | 3195 @ 65 | 74.48 |
| 37x13.50R17LT E 121Q | 201390 | 19.3 | 36.77 | 13.58 | 8.5-(11.0)-11.0 | 3195 @ 65 | 81.90 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT265/65R18 E 122/119Q | 206590 | 18.4 | 31.77 | 10.71 | 7.5-(8.0)-9.5 | 3305 @ 80 | 57.76 |
| LT275/65R18 E 123/120Q | 206910 | 18.4 | 32.32 | 10.98 | 7.5-(8.0)-9.0 | 3415 @ 80 | 60.54 |
| LT275/70R18 E 125Q | 206960 | 18.4 | 33.43 | 10.98 | 7.0-(8.0)-9.0 | 3640 @ 80 | 60.45 |
| LT285/65R18 E 125/122Q | 201300 | 18.4 | 32.80 | 11.50 | 8.0-(8.5)-10.0 | 3640 @ 80 | 61.42 |
| LT285/70R18 E 127/124Q | 201310 | 18.4 | 33.98 | 11.50 | 7.5-(8.5)-9.5 | 3860 @ 80 | 64.27 |
| 35X12.50R18LT E 123Q | 206920 | 19.3 | 34.76 | 12.52 | 8.5-(10.0)-11.0 | 3415 @ 65 | 71.29 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT275/55R20 E 120/117Q | 201320 | 18.4 | 32.13 | 11.18 | 7.5-(8.5)-9.5 | 3085 @ 80 | 60.64 |
| LT275/60R20 E 123/120Q | 206580 | 18.4 | 33.23 | 10.98 | 7.5-(8.0)-9.5 | 3415 @ 80 | 63.84 |
| LT275/65R20 E 126Q | 206950 | 18.4 | 34.33 | 10.98 | 7.5-(8.0)-9.5 | 3750 @ 80 | 65.14 |
| LT285/55R20 E 122/119Q | 201290 | 18.4 | 32.60 | 11.69 | 8.0-(9.0)-10.0 | 3305 @ 80 | 64.81 |
| LT285/60R20 E 125/122Q | 201340 | 18.4 | 33.70 | 11.50 | 8.5-(8.5)-10.0 | 3640 @ 80 | 64.65 |
| LT285/65R20 E 127/124Q | 201330 | 18.4 | 34.80 | 11.50 | 8.0-(8.5)-10.0 | 3860 @ 80 | 68.51 |
| LT295/55R20 E 123/120Q | 206570 | 18.4 | 32.99 | 12.17 | 8.0-(9.5)-10.0 | 3415 @ 80 | 69.20 |
| LT305/55R20 E 121Q | 206930 | 18.4 | 33.46 | 12.44 | 8.5-(9.5)-11.0 | 3195 @ 65 | 67.83 |
| LT325/60R20 E 126/123Q | 206620 | 18.4 | 35.59 | 13.03 | 9.0-(9.5)-12.0 | 3750 @ 65 | 77.29 |
| 35x11.50R20LT E 124Q | 201400 | 19.3 | 34.76 | 11.42 | 8.0-(9.0)-10.5 | 3525 @ 80 | 68.97 |
| 35x12.50R20LT E 121Q | 206880 | 19.3 | 34.76 | 12.52 | 8.5-(10.0)-11.0 | 3195 @ 65 | 73.03 |
| 37x13.50R20LT E 127Q | 201410 | 19.3 | 36.77 | 13.58 | 8.5-(11.0)-11.0 | 3860 @ 65 | 84.73 |
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
LT235/80R17 E 120/117Q
- Stock Number: 206890
- Tread Depth (1/32 in): 18.3
- Inflated Dimensions - Overall Dia (in): 32.05
- Inflated Dimensions - Overall Width (in): 9.25
-
Approved Rim Width Range (in): 6.0-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3085 @ 80
- Weight: 51.34
-
LT245/75R17 E 121Q
- Stock Number: 206940
- Tread Depth (1/32 in): 18.3
- Inflated Dimensions - Overall Dia (in): 31.73
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 6.5-(7.0)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 53.34
-
LT265/70R17 E 121/118Q
- Stock Number: 206870
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.0-(8.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 60.81
-
LT285/70R17 E 121/118Q
- Stock Number: 206860
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.99
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 7.5-(8.5)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 61.51
-
35x12.50R17LT E 121Q
- Stock Number: 206900
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 12.52
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 74.48
-
37x13.50R17LT E 121Q
- Stock Number: 201390
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 13.58
-
Approved Rim Width Range (in): 8.5-(11.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 81.90
-
LT265/65R18 E 122/119Q
- Stock Number: 206590
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 31.77
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3305 @ 80
- Weight: 57.76
-
LT275/65R18 E 123/120Q
- Stock Number: 206910
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.32
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 60.54
-
LT275/70R18 E 125Q
- Stock Number: 206960
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 33.43
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 60.45
-
LT285/65R18 E 125/122Q
- Stock Number: 201300
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.80
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 8.0-(8.5)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 61.42
-
LT285/70R18 E 127/124Q
- Stock Number: 201310
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 33.98
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 80
- Weight: 64.27
-
35X12.50R18LT E 123Q
- Stock Number: 206920
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 12.52
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 71.29
-
LT275/55R20 E 120/117Q
- Stock Number: 201320
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.13
- Inflated Dimensions - Overall Width (in): 11.18
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3085 @ 80
- Weight: 60.64
-
LT275/60R20 E 123/120Q
- Stock Number: 206580
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 33.23
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 63.84
-
LT275/65R20 E 126Q
- Stock Number: 206950
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 34.33
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 65.14
-
LT285/55R20 E 122/119Q
- Stock Number: 201290
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.60
- Inflated Dimensions - Overall Width (in): 11.69
-
Approved Rim Width Range (in): 8.0-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3305 @ 80
- Weight: 64.81
-
LT285/60R20 E 125/122Q
- Stock Number: 201340
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 33.70
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 8.5-(8.5)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 64.65
-
LT285/65R20 E 127/124Q
- Stock Number: 201330
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 34.80
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 8.0-(8.5)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 80
- Weight: 68.51
-
LT295/55R20 E 123/120Q
- Stock Number: 206570
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 32.99
- Inflated Dimensions - Overall Width (in): 12.17
-
Approved Rim Width Range (in): 8.0-(9.5)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 69.20
-
LT305/55R20 E 121Q
- Stock Number: 206930
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 33.46
- Inflated Dimensions - Overall Width (in): 12.44
-
Approved Rim Width Range (in): 8.5-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 67.83
-
LT325/60R20 E 126/123Q
- Stock Number: 206620
- Tread Depth (1/32 in): 18.4
- Inflated Dimensions - Overall Dia (in): 35.59
- Inflated Dimensions - Overall Width (in): 13.03
-
Approved Rim Width Range (in): 9.0-(9.5)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 77.29
-
35x11.50R20LT E 124Q
- Stock Number: 201400
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 11.42
-
Approved Rim Width Range (in): 8.0-(9.0)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3525 @ 80
- Weight: 68.97
-
35x12.50R20LT E 121Q
- Stock Number: 206880
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 12.52
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 73.03
-
37x13.50R20LT E 127Q
- Stock Number: 201410
- Tread Depth (1/32 in): 19.3
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 13.58
-
Approved Rim Width Range (in): 8.5-(11.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 65
- Weight: 84.73
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)

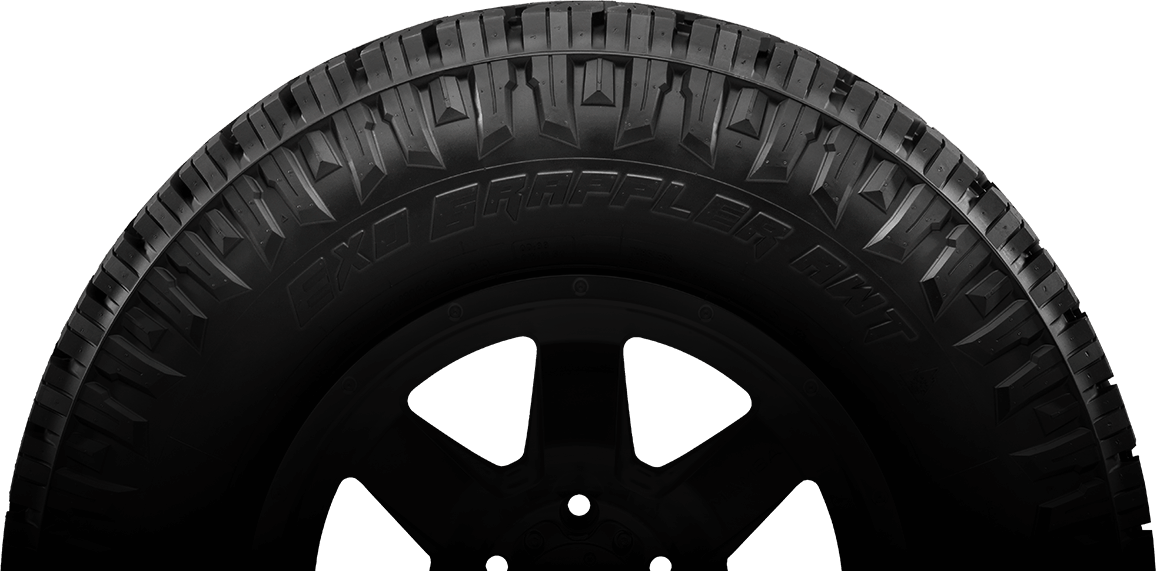

Exo Grappler
Light Truck Commercial Grade All Weather Tire
The Exo Grappler® AWT is built to meet the all-weather demands of various off-road terrains.
Find a Store
Overall ratings
PERFORMANCE RATINGS
-
Off-Road Performance is a 4 out of 54 -
Dry Performance is a 4 out of 54 -
Wet Performance is a 4 out of 54 -
Quietness is a 3 out of 53 -
Ride Comfort is a 3 out of 53 -
Winter Traction is a 5 out of 55
